IEC60529 Multi-Function IPX3–IPX6 Water Spray & Jet Test Chamber for Enclosure Protection Testing
Equipment Overview:
Application Background: The destruction of products and materials by natural water (rain, sea, river, etc.) causes an incalculable economic loss every year. The damages caused mainly include corrosion, fading, deformation, strength drop, expansion, mildew, etc., especially electrical products are easily broken into fires due to short circuits caused by rain. Therefore, enclosure protection water testing for specific products or materials is an essential and critical process.
General application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.
Equipment function: The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components under simulated climatic conditions. After the test, judge whether the performance of the product meets the requirements by the verification, so as to facilitate the design, improvement, verification and factory inspection of the product.
Standard: IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures (IP Code)> IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.
Equipment Features:
1.Suitable for product IPX3, IPX4, IPX5, IPX6 waterproof rating test.
2. The outer casing is made of domestic high-quality steel plate, and the surface is painted with baking varnish, which is beautiful and durable.
3.The inner chamber and turntable are all made of SUS304# stainless steel plate to ensure long-term use without rust.
4. There is a transparent observation window on the door, and LED lighting inside of the chamber, easy for operator to observe the internal test.
5. IPX34: Configured R200mm,R400mm and R600mm oscillating tubes according to the specifications of IEC60529 figure 4 (as shown below)
6. IPX56: Configured a spray nozzle according to the specifications of IEC60529 figure 6 (as shown below):
7. Turntable drive: use high-quality stepper motor, can automatically control the positive and negative rotation (forward and reverse: suitable for the sample power-on test and to prevent cable winding).
8. The test time can be set on the touch screen. The setting range is 0-999min (adjustable).
9. The core control system adopts 7-inch touch screen + PLC. The electrical components adopt imported brands such as Omron. The wiring process conforms to the requirements of national standards. The layout of the electric board is reasonable, the wiring is firm and the marking is clear.
10. There is configured with a waterproof socket inside the chamber for power on the sample.
11. With safety protections of leakage protection, water shortage protection, short circuit protection.
Technical parameters:
| Technical Parameters |
Basic Parameters |
| Inner Chamber Size |
L1400*W1400*H1400mm |
| Outer Chamber Size |
L1880*W4200*H2200mm |
| Allowed dimensions of products |
Length and width ≤1000mm, height ≤100mm |
| Turntable Diameter |
￠200mm and 600mm
|
| Turntable Maximum Load Bearing |
≤20KG |
| Turntable Speed |
1-5r/min (adjustable) |
| Turntable Rotation Method |
Always positive / positive and negative alternate |
| Flow Adjustment Method |
Manually adjust flow by adjusting flow meter on the panel |
| Test Time |
0-999 min |
| Power supply for sample |
Configured with a waterproof socket inside the chamber for client to power on sample during test, can be manufactured according to the type of socket used by the customer.
|
| Water supply for testing |

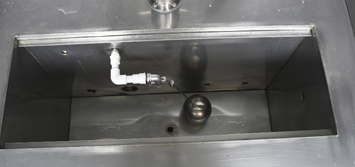

With a built-in water tank of approx. 90L, the water can be recycled
|
| Total Weight |
Approx. 450kg |
| Required site place |
4.4m(D)*2.2m(W)*2.4m(H) |
| IPX34 Oscillating Tubes Parameters |
| Oscillation Tube |
R200 mm and R400mm and R600mm
|
| Distance between Nozzle Sample |
Within 200mm |
| Spray Aperture Spacing |
50 mm |
| Oscillating Tube Swing Angle |
±60° (IPX3),
approximately ±160°(IPX4)
(Note: standard requires IPX3:120°; IPX4: almost 360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
|
| Angle Between Two Holes |
120°(IP3)
180°(IP4)
|
| Needle Hole |
φ0 .4 mm |
| Oscillating Speed |
IPX3: 15times/min; IPX4: 5times/min |
| Water Flow of Each Hole |
0.07 L/min +5% |
| Spray Pressure |
80-150Kpa |
| IPX56 Jet Nozzle Parameters |
| IPX5 Nozzle Jet Aperture |
6.3mm |
| IPX6 Nozzle Jet Aperture |
12.5mm |
| IPX5Jet Flow |
12.5±0.625 |
| IPX6 Jet Flow |
100±5L/min |
| Water Pressure (Mpa) |
Adjusted according to the specified water flow |
| Jet Distance |
2.5M (nozzle away from the center of the turntable), the distance can be achieved by the tunnel
|
| Nozzle Fixed Method |
Mechanical fixing
|
| Electrical Parameters |
| Power Supply for Equipment |
380V, 50Hz |
| Equipment Power |
5.0KW |
| Safety Protection Function |
Leakage protection, water shortage protection, short circuit protection |
| Conditions of Use |
The following conditions are guaranteed by the user and the corresponding connection is completed. |
| Use of Space |
The ground is level, the drainage is smooth, floor and wall are waterproofing,
Ground bearing capacity is not less than 200kg/㎡
Well ventilated
No strong vibration around the device
No strong electromagnetic field around the device
No flammable, explosive, corrosive substances and dust around the equipment
Appropriate use and maintenance space is left around the equipment:
Rear side, left and right side, top of the equipment: 800mm; front side of equipment: 1400mm
|
| Environmental Conditions |
Temperature:5℃～35℃
Relative humidity: ≤85%
Air pressure:86kPa～106kPa
|
| Power Supply Conditions |
|
| Voltage, Frequency |
AC380V; 50Hz; three-phase four-wire + protective ground wire |
| Power |
5.0kW |
| Protective Grounding Resistance |
Grounding resistance of protective grounding wire is less than 4Ω |
| Power Switch |
1. The user is required to configure the leakage protection air switch of the corresponding capacity for the equipment at the installation site, and the switch must be used independently for the device.
2. It is forbidden to use the knife switch or power socket.
3. The leakage protection air switch is not more than 2 meters away from the equipment.
|
| Water Source |
1. The user is required to configure the water source for the equipment at the installation site, the water pressure is not less than 0.2Mpa, and the 4-point faucet is installed.
2. The position of the faucet is no more than 2 meters away from the equipment.
3. If customer’s water supply connector is different type, customer needs to prepare a adapter.
|
|
|
